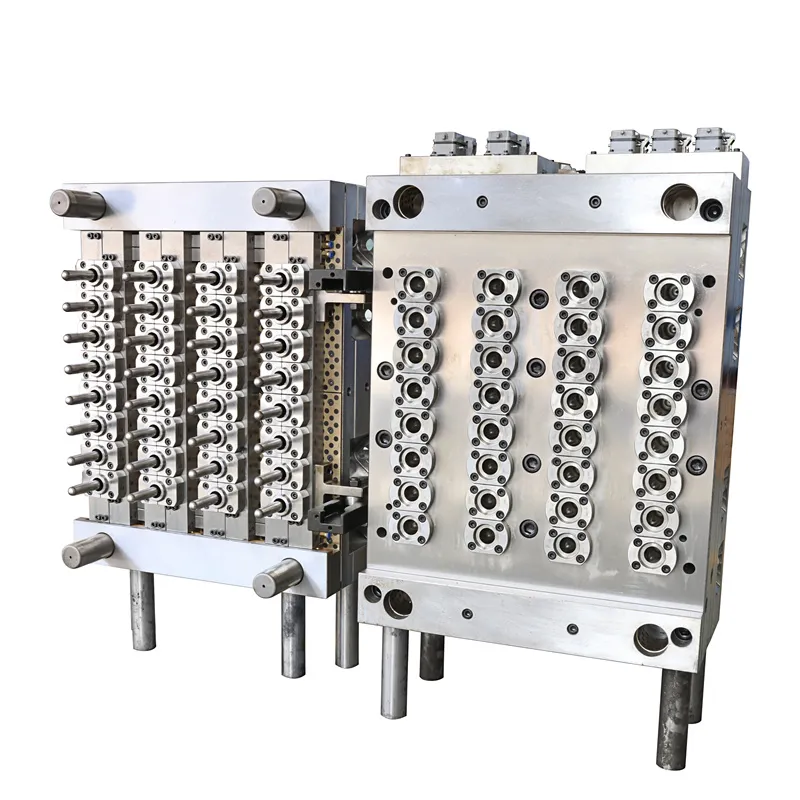

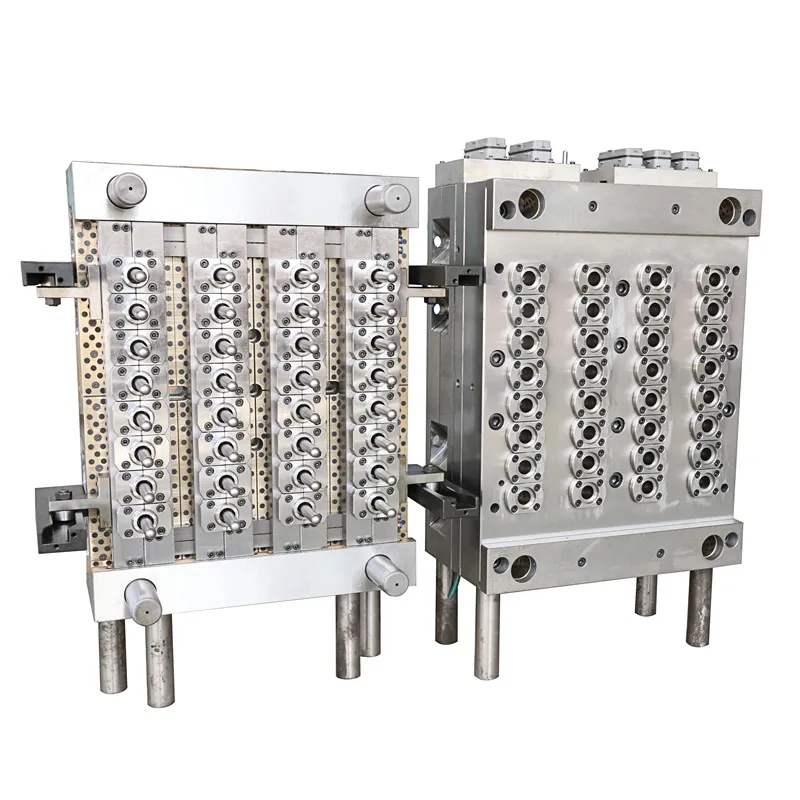

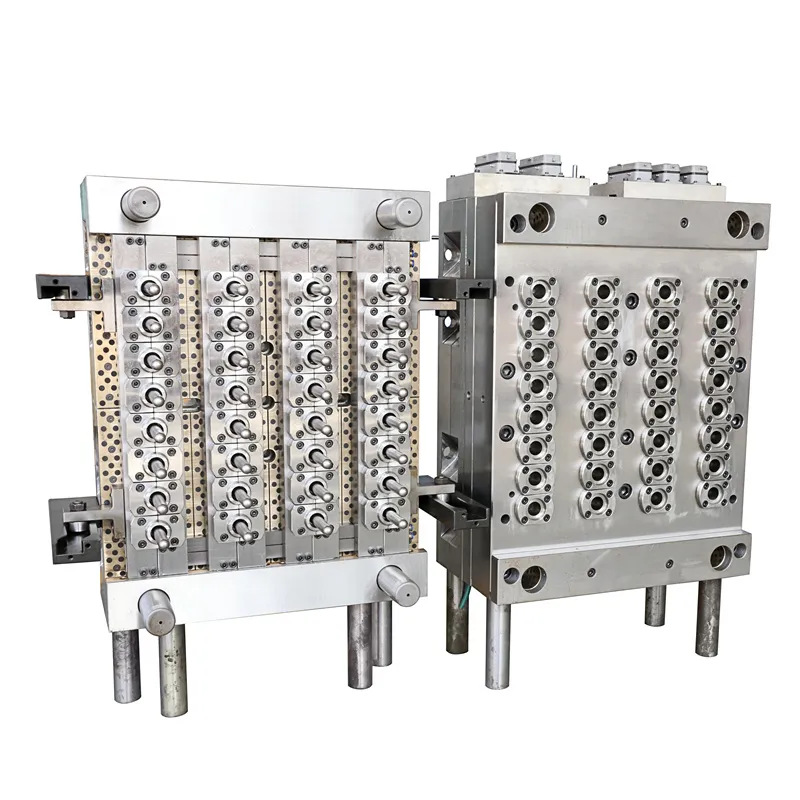

32 Cavity High Quality Hot Sale Plastic Injection Preform Mould

32 Cavity High Quality Hot Sale Plastic Injection Preform Mould

Taizhou Huangyan Daelong Mold Co., LTD (Taizhou Huangyan Hengyuan Mold &Plastic factory) was established in July 1993.The company located at No.58Kangzhuang Road,Huangyan economic development zone,It's a professionaltechnology enterprise for High speed cap compression moulding machine,PETpreform......Keywords:32 Cavity High Quality Hot Sale Plastic Injection Preform Mould, Pet Preform Mold, Injection Mould

Send Inquiry

Product Description

Taizhou Huangyan Daelong Mold Co., LTD (Taizhou Huangyan Hengyuan Mold &Plastic factory) was established in July 1993.The company located at No.58Kangzhuang Road,Huangyan economic development zone,It's a professionaltechnology enterprise for High speed cap compression moulding machine,PETpreform mold and Cap mold ,There are more than 20 scientific and technicalpersonnel engaged in R&D and related scientific technological innovationactivities, 36 scientific and technological achievements have been formed throughindependent research and development, and 32 projects have been transformedby self-investment.Four types of high-tech products are formed: high-speed precisioninjection molding molds for PET preforms, precision injection molds for plasticbottle caps for flexible packaging, high-speed cap compression molds andhigh-speed cap compression molding machines.We have cooperated withdomestic famous brands such as C'estbon, Haitian Soy Sauce, Mengniu, Yili.Blue Moon, etc.Win the trust of customers and form a company's own brand.

                          THE  MATERIAL  OF  THE  MOLD
Mould  cavity  Germany  2316  with  HRC  42-45
Mould  core  Germany  2316  with  HRC  45-48
Mould  neck  Germany  2316  with  HRC  45-50
Valve  Pin SKD51  from  Japan  with  HRC  58-60
Valve  Pin  heat  Isolation  pad  America  Dupont  can  withstand  350  degrees  temperature
Hot  runner  nozzle America  Beryllium  copper  with  HRC  37
Mould  manifold  plate H13  from  America  with  HRC  35-38
Mould  other  plate P20
Other  Specification  of  the  Mould
Hot  runner  system    Hot  runner  system  is  made  by  our  own  factory,   But  the  spare  parts  of  the  Hot  runner  is  from  Germany  Hotest
PID  controller Made  by  our  own  factory
Guarantee  for  the  Mould    1  million  shot  times  of  1  year
Free  spare  parts  of  the  mould  Core  set  :   1set/  cavity:   1  Piece/  hot  runner  system: 1set/PID  controller  system:   1Set/  other  easy  broken  spare  parts  for  each  8cavities  cap  mould.
The  life  of  the  mould 5-6years  , Even  in  10  years  in  good  maintenance
Installation  &   Commission Our  technician  can  be  the  buyer' s  factory  to  install  and  run  the  mould.   But  the  buyer  should  bear  all  the  cost  for  the  technician' s  trip(include  the  air  ticket,   the  cost  of  the  accommodation  and  the  salary)
